AIRMEXT Air Suspension Strut For Ford Kuga C520 With Camber Plate 2012-2019

Product Description

For Ford Kuga C520 with camber plate 2012-2019 air strut kit air suspension/air spring/shock absorber

MODEL FITMENT

--- Ford Kuga C520 with camber plate 2012-2019

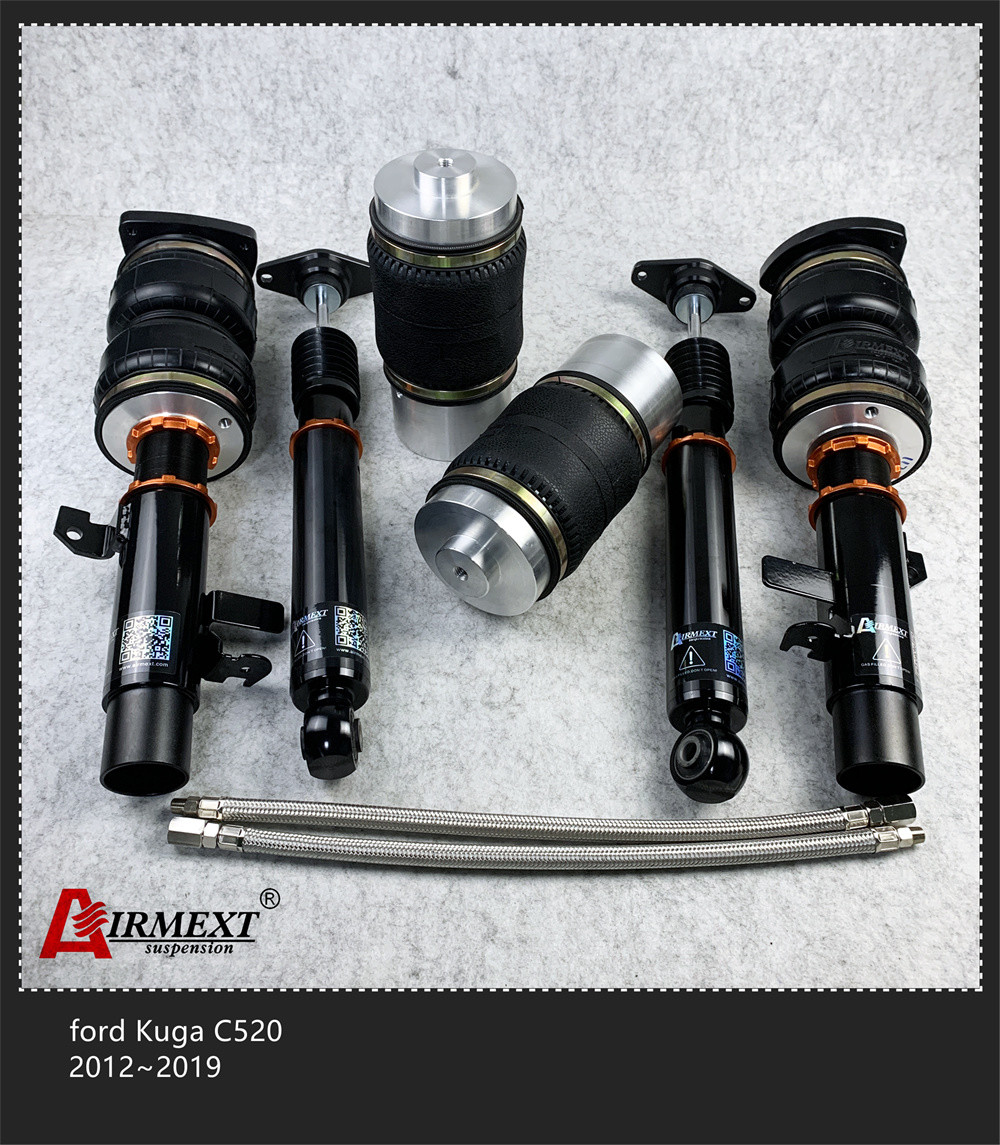

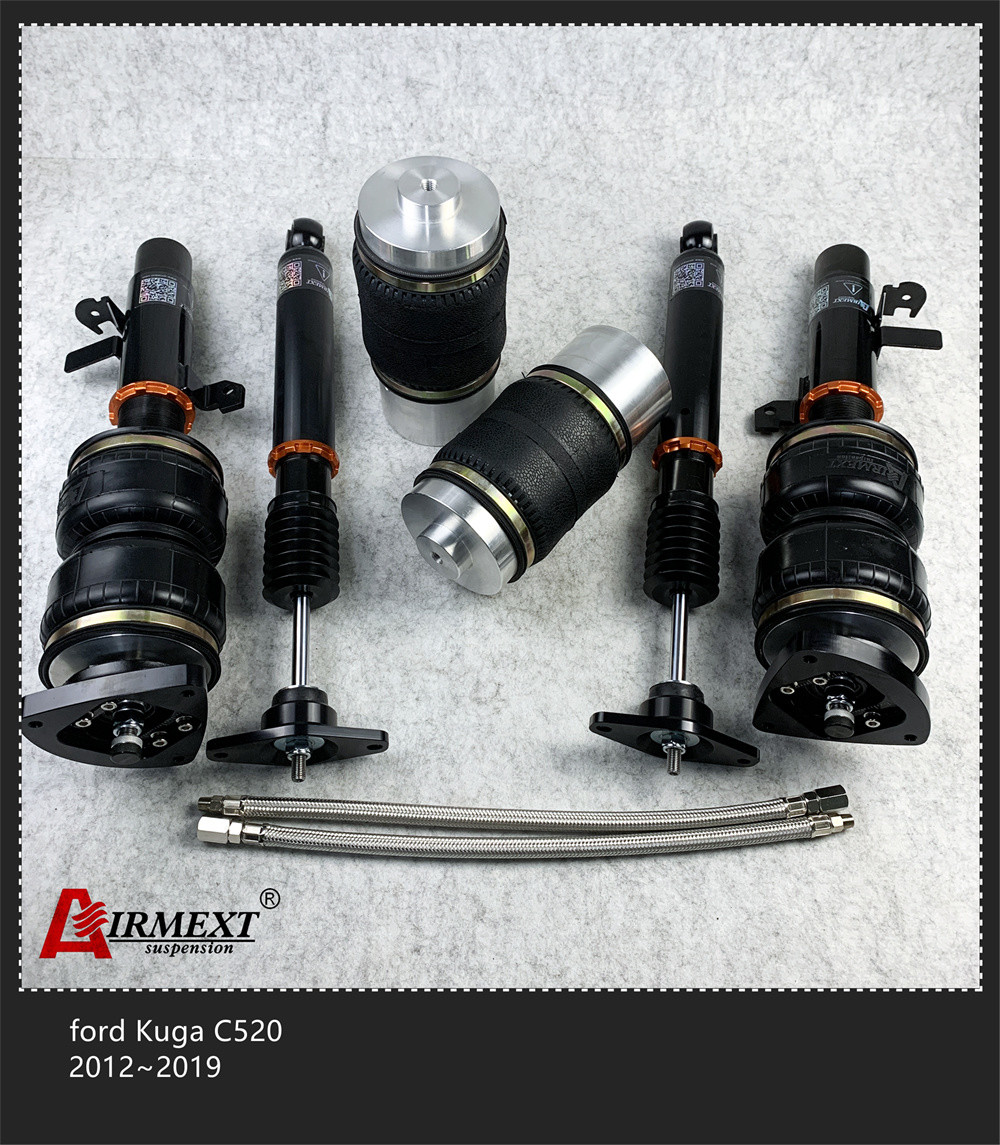

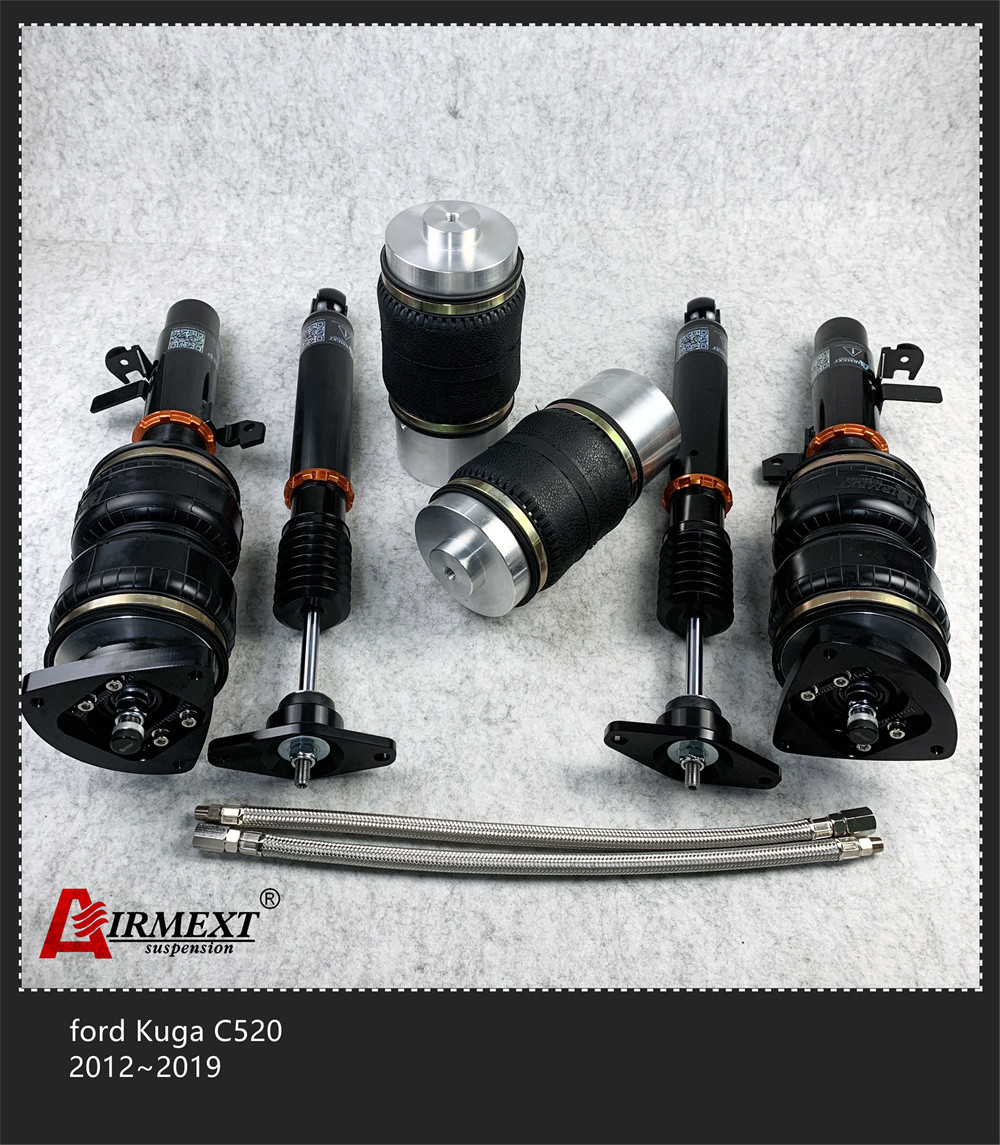

1.This air strut pack including:

-------4 * AIRMEXT  air strut  ( front shocks 2pcs and  rear shocks 2pcs )

-------2 * spacers + bolts

-------4 * 1/8NPT air fittings

-------4 * dampers

-------2 *spanners (wrenches)

-------2 * sway bar (optional if needed)

-------2 * Pillow ball camber plate (optional and extra charged,pls contact with on-line service)

2. Features:

----- 32 level adjustable damping

Which allow you to dial in your air suspension even further. Adjust the damping softer (counterclockwise) or stiffer (clockwise) by simply inserting the included damping knob and turning it either way.

----- Threaded and adjustable shock mounts

Adding extra adjustment to your ride height at any PSI setting you choose is the ability to have an adjustable mount, just like coilover kits. The benefit is being able to get the perfect ride height at virtually any PSI you're comfortable driving.

----- 125mm drop (front and rear)

Front and rear spacer with 125mm drop (travel) that raises and lowers your car body randomly, works with AIRMEXT G5 air management to be 3-level memorized height adjustable.

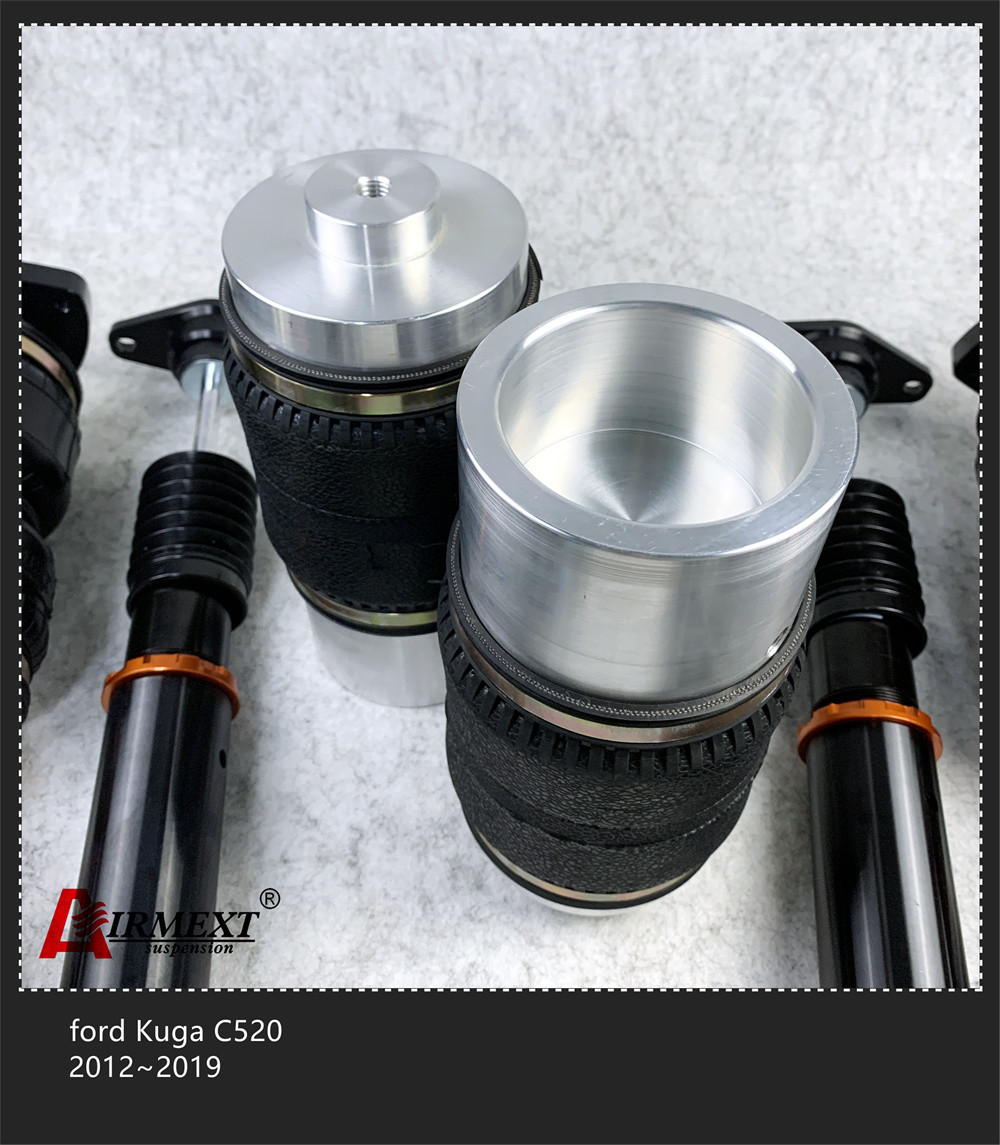

----- High Pressure Double Bellows Progressive Rate Spring

Designed and engineered to match your vehicle, twin bellows type slim bags are available depending on your vehicle's OEM suspension type. Air pressure directly correlates to how stiff or soft your car is. Higher PSI = stiffer ride. Low PSI = smoother ride. Every car is different and it may take some time to dial in your preferred settings.

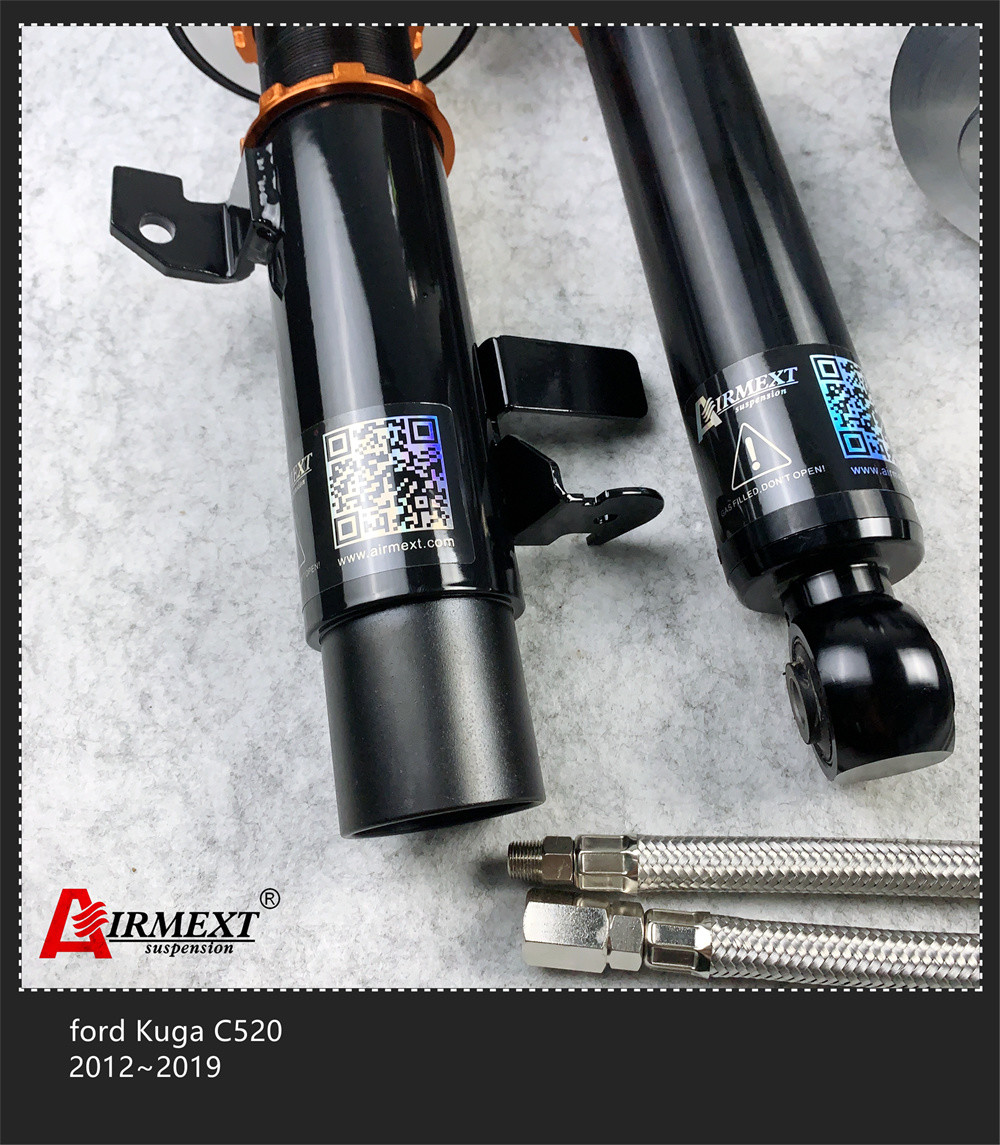

---- High Performance AIRMEXT Shock Absorbers

Each air strut kit comes with the same quality shocks as standard in our coilover systems. Air shocks have a different internal valve setting to accommodate changes in PSI.

----- 12 Month Limited Warranty
Our warranty is 12 months from the date of original purchase which covers manufacturer defects

4. This item is just a air strut part of a complete set of air suspension system, you need to match other accessories according to your interest. AIRMEXT,ACCUAIR, AIRLIFT etc control system.

5. It is to adjust the height of the chassis by automatically controlling, automatically ascending

When driving while lower when the car parking, the shock absorption capacity can be adjusted randomly,

Significantly improves comfort.
